Intro ggplot
Autor
Patric Eichelberger, patric.eichelberger@bfh.ch
Init
Code
library(tidyverse)
library(plotly)
library(data.table) # provides fread()Import hip data set
Code
filepath <- file.path("HipData.csv")
df <- fread(filepath)
head(df) ID HipRot_INNEN_Flexion HipRot_AUSSEN_Flexion HipRot_INNEN_Extension
<char> <int> <int> <int>
1: hip1 30 50 25
2: hip2 44 32 42
3: hip3 40 50 38
4: hip4 28 28 32
5: hip5 15 30 15
6: hip6 20 30 40
HipRot_AUSSEN_Extension
<int>
1: 40
2: 36
3: 51
4: 28
5: 30
6: 45
Box plots to summarise data

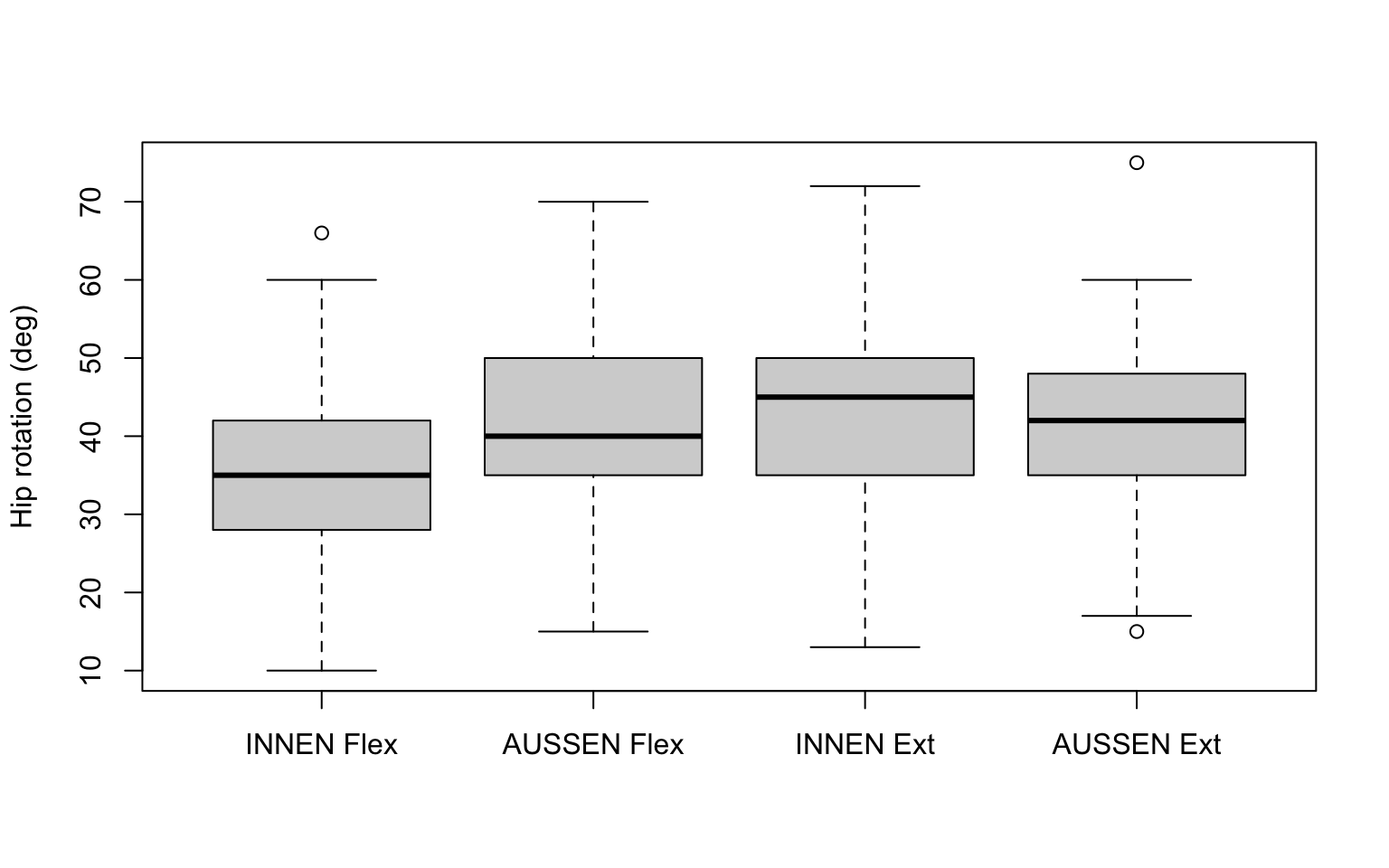

Using R-base plotting:
Code
label = c("INNEN Flex", "AUSSEN Flex", "INNEN Ext", "AUSSEN Ext")
boxplot(df$HipRot_INNEN_Flexion,
df$HipRot_AUSSEN_Flexion,
df$HipRot_INNEN_Extension,
df$HipRot_AUSSEN_Extension,
names = label,
ylab = "Hip rotation (deg)")

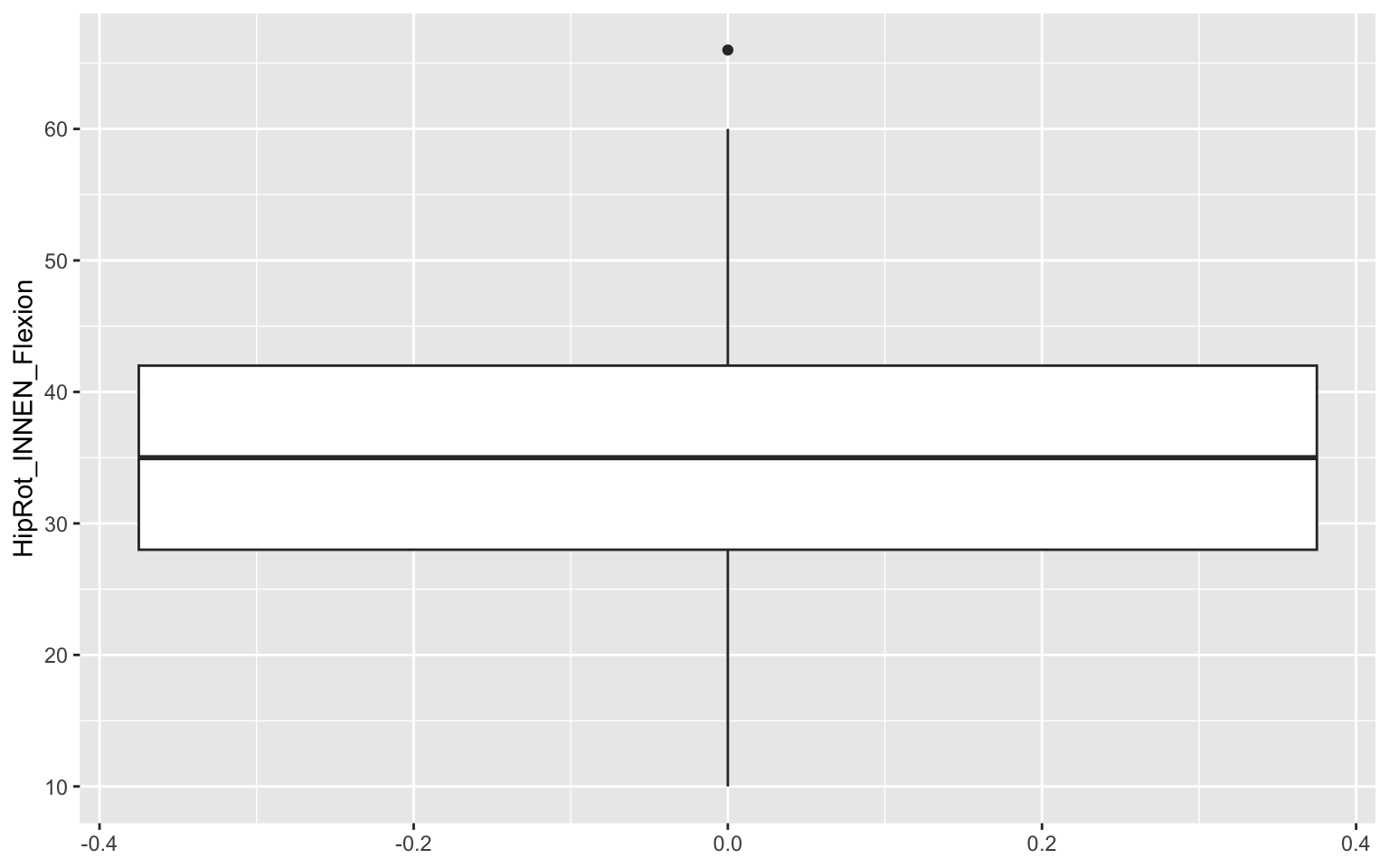

To achieve something similar with ggplot:
Code
ggplot(data = df, aes(y = HipRot_INNEN_Flexion)) +
geom_boxplot()
The problem is, that we would need to make four separate plots, since we can only provide one y-axis variable to ggplot. This is far away from convienient.
To use the strengts of ggplot, we need to make data tidy. E.g. we want want on row per observation in the data set. We make grouping variables for the suffixes in the variable names.
- Direction: AUSSEN/INNEN
- ASTE (Ausgangsstellung): Flexion/Extension
Don’t do that by hand and instead use the pivot_longer function from the tidyr package, which is part of the tidyverse package (https://tidyverse.tidyverse.org/), a package for data science in R. tidyverse contains the data science packages
- ggplot2, for data visualisation.
- dplyr, for data manipulation.
- tidyr, for data tidying.
- readr, for data import.
- purrr, for functional programming.
- tibble, for tibbles, a modern re-imagining of data frames.
- stringr, for strings.
- forcats, for factors.
- lubridate, for date/times.
For each of those packages, there are cheatsheets to easy the daily use. Very helpful to learn how to work with those packages is the book R for Data Science (2e) from Hadley Wickham et al. available at https://r4ds.hadley.nz/.
Code
dflong <- df %>% pivot_longer(
cols = -c("ID"),
names_to = c(".value", "Direction", "ASTE"),
names_pattern = ("(.*)_(.*)_(.*)")
)
dflong$Direction <- as_factor(dflong$Direction)
dflong$ASTE <- as_factor(dflong$ASTE)
head(dflong)# A tibble: 6 × 4
ID Direction ASTE HipRot
<chr> <fct> <fct> <int>
1 hip1 INNEN Flexion 30
2 hip1 AUSSEN Flexion 50
3 hip1 INNEN Extension 25
4 hip1 AUSSEN Extension 40
5 hip2 INNEN Flexion 44
6 hip2 AUSSEN Flexion 32
Code
str(dflong)tibble [496 × 4] (S3: tbl_df/tbl/data.frame)
$ ID : chr [1:496] "hip1" "hip1" "hip1" "hip1" ...
$ Direction: Factor w/ 2 levels "INNEN","AUSSEN": 1 2 1 2 1 2 1 2 1 2 ...
$ ASTE : Factor w/ 2 levels "Flexion","Extension": 1 1 2 2 1 1 2 2 1 1 ...
$ HipRot : int [1:496] 30 50 25 40 44 32 42 36 40 50 ...
Create the boxplots with ggplot. ggplot follows a layered approach:
graph = data + coordinate system + plot

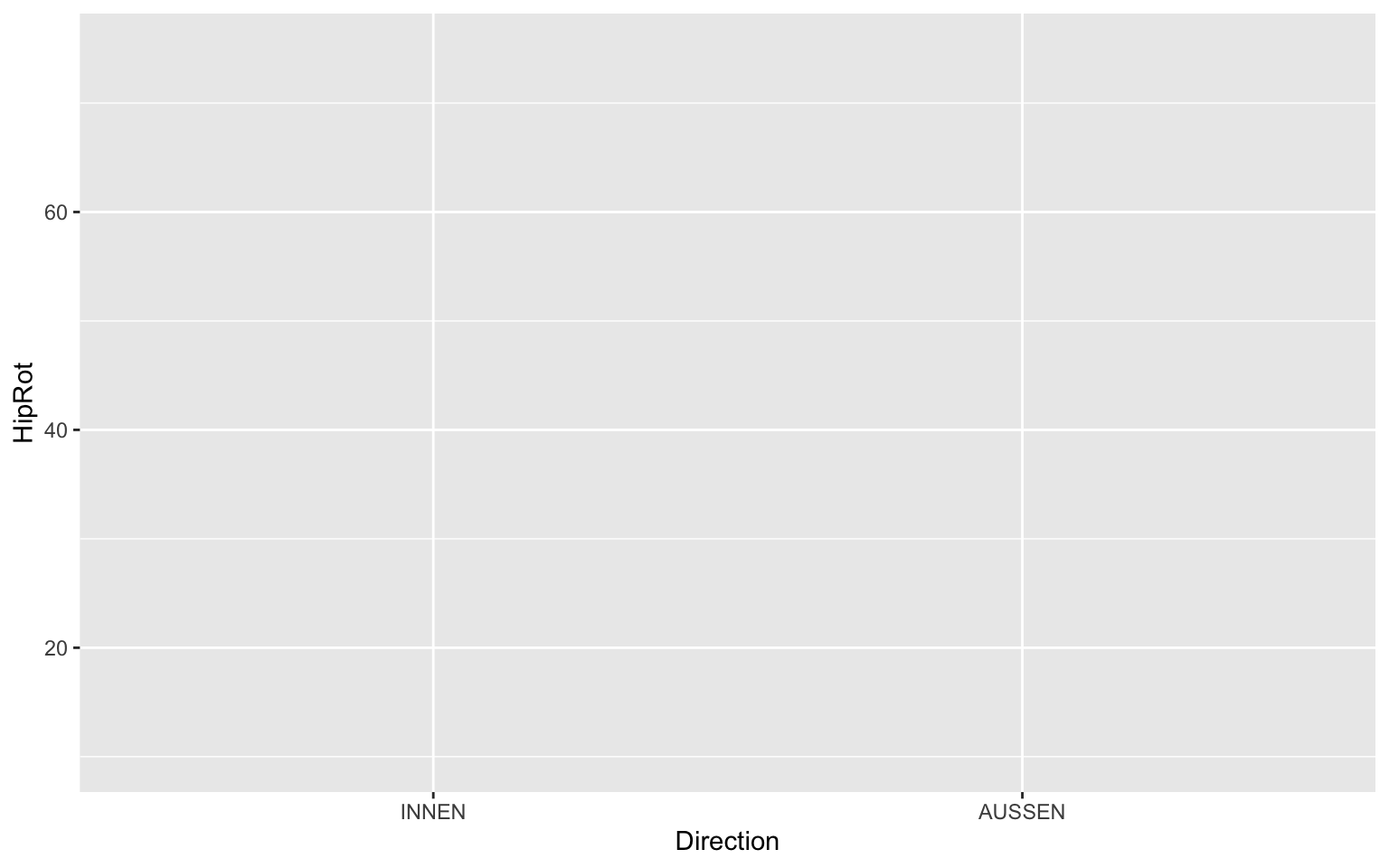

The following just creates an axes without plotting anything.
Code
ggplot(data = dflong, aes(x = Direction, y = HipRot))

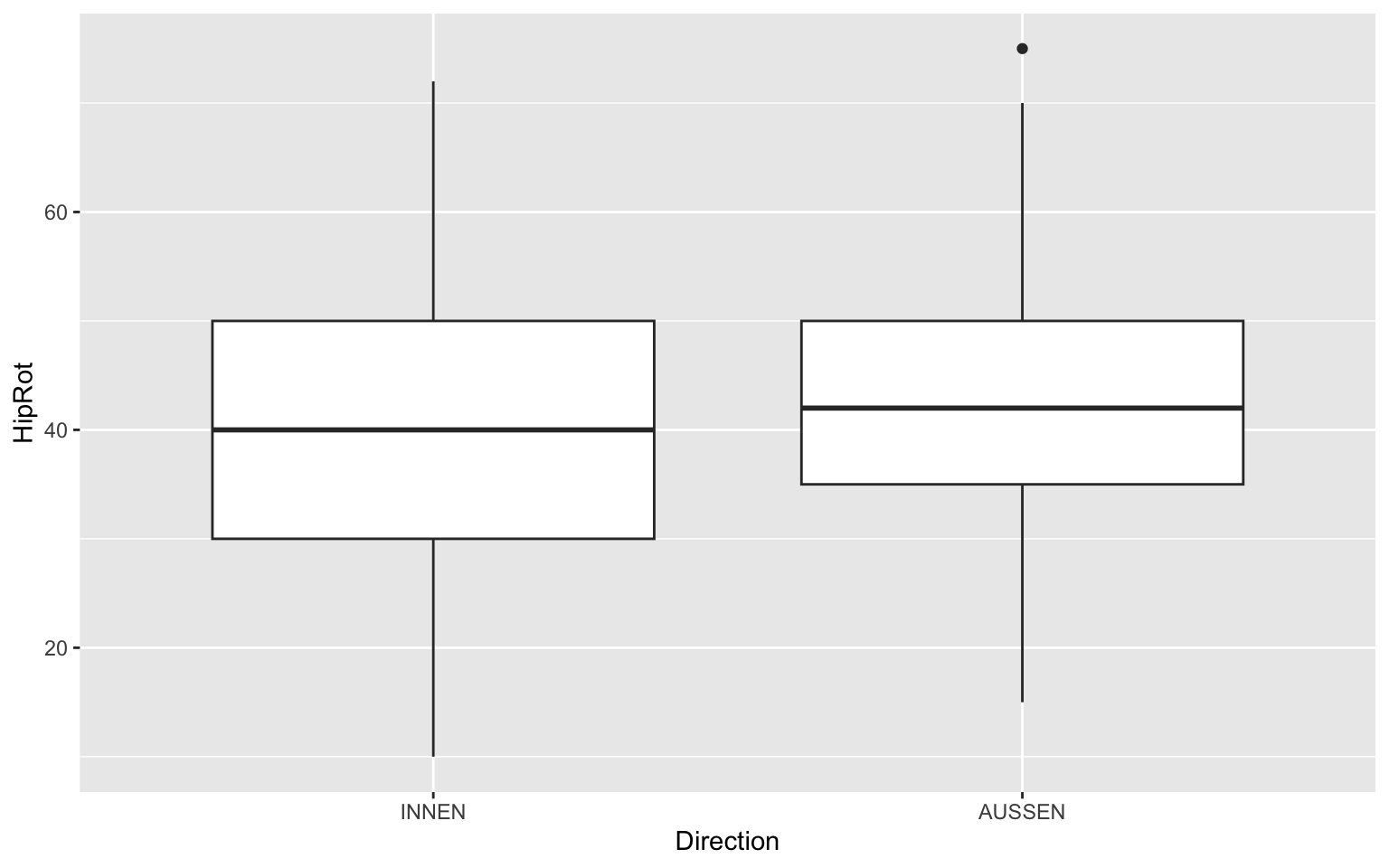

We need to tell ggplot to make box plots out from the provided data
Code
ggplot(data = dflong, aes(x = Direction, y = HipRot)) +
geom_boxplot()

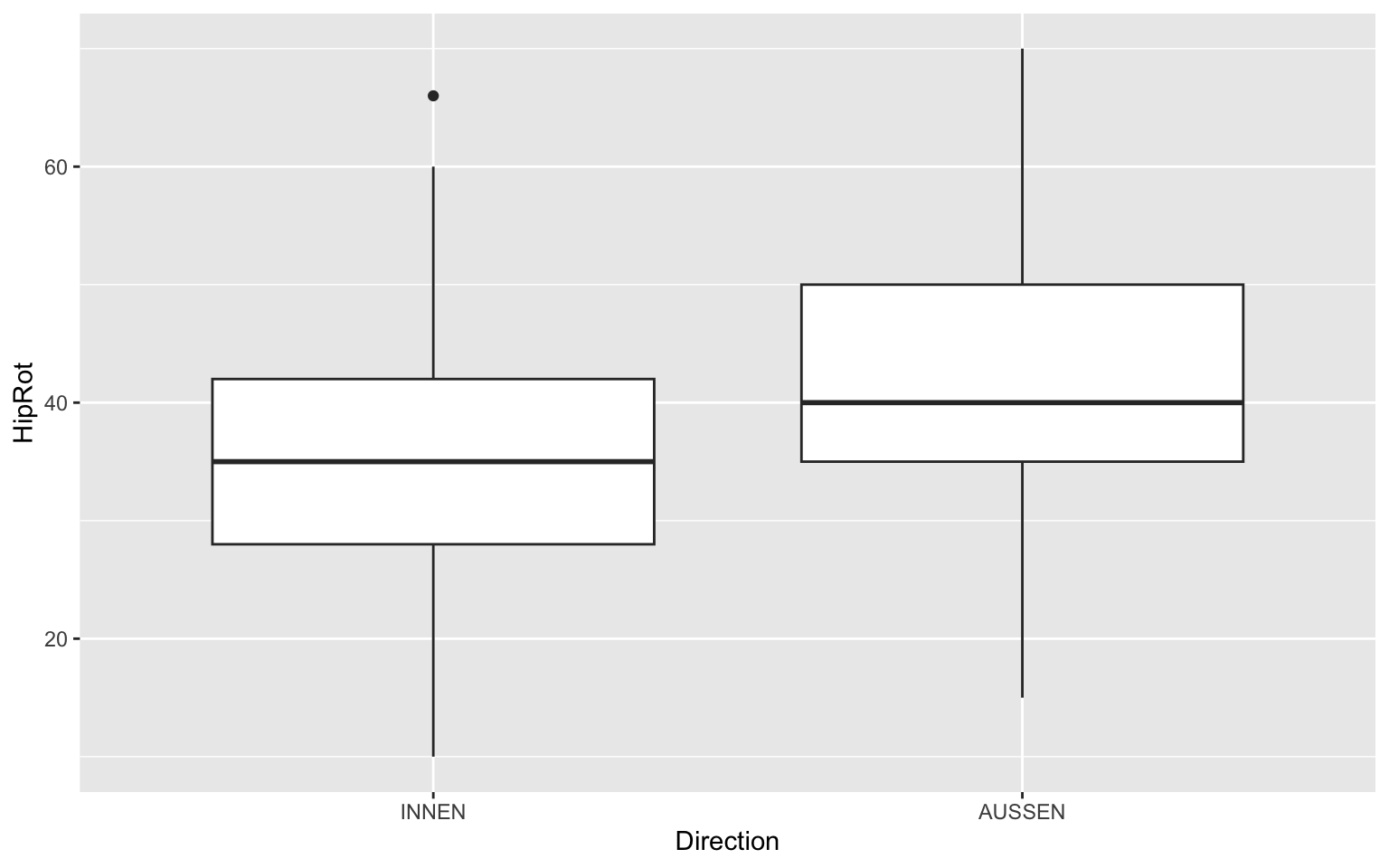

The problem is now that we collapsed the ASTEs in those two boxplots. An approach is to input only a data frame with either Flexion or Extension data an make separate figures. To select a subset of rows in a data frame, we use here filter() from the dplyr package.
Code
dfp <- filter(dflong, ASTE == "Flexion")
ggplot(data = dfp, aes(x = Direction, y = HipRot)) +
geom_boxplot()
REMARK about piping operations: Instead of first allocating a sub-dataset to a variable we can achieve the same with less typing when using the piping operator %>%:
Code
dflong %>%
filter(ASTE == "Flexion") %>%
ggplot(aes(x = Direction, y = HipRot)) +
geom_boxplot()
Code
dflong %>%
filter(ASTE == "Extension") %>%
ggplot(aes(x = Direction, y = HipRot)) +
geom_boxplot()

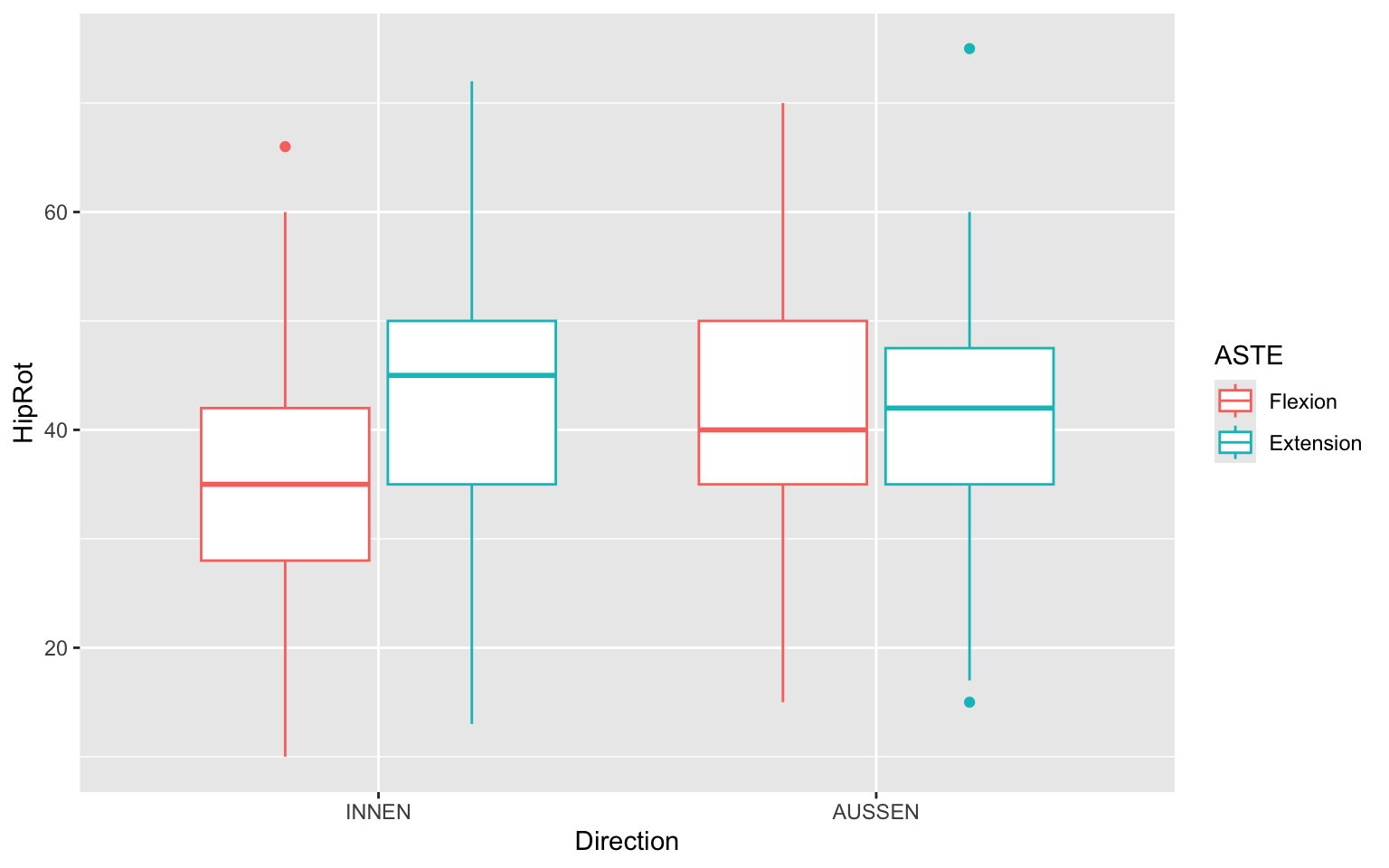

We now generated two separate figures for the two ASTEs. However, this is still not very convenient, since we repeat our code and we don’t have the same y-axis limits to compare the data summaries. This is where the strengths of ggplot come into play. First, lets differentiate the ASTEs by different colors:
Code
dflong %>%
ggplot(aes(x = Direction, y = HipRot, color = ASTE)) +
geom_boxplot()
We could also plot into separate axes in subfigures using facet_wrap or facet_grid. However, that this works we need to take care that the grouping variables are of the type factor.
Code
dflong %>%
ggplot(aes(x = Direction, y = HipRot)) +
geom_boxplot() +
facet_wrap(vars(ASTE))
We could also wrap the variable Direction:
Code
dflong %>%
ggplot(aes(y = HipRot)) +
geom_boxplot() +
facet_grid(rows = vars(Direction), cols = vars(ASTE))

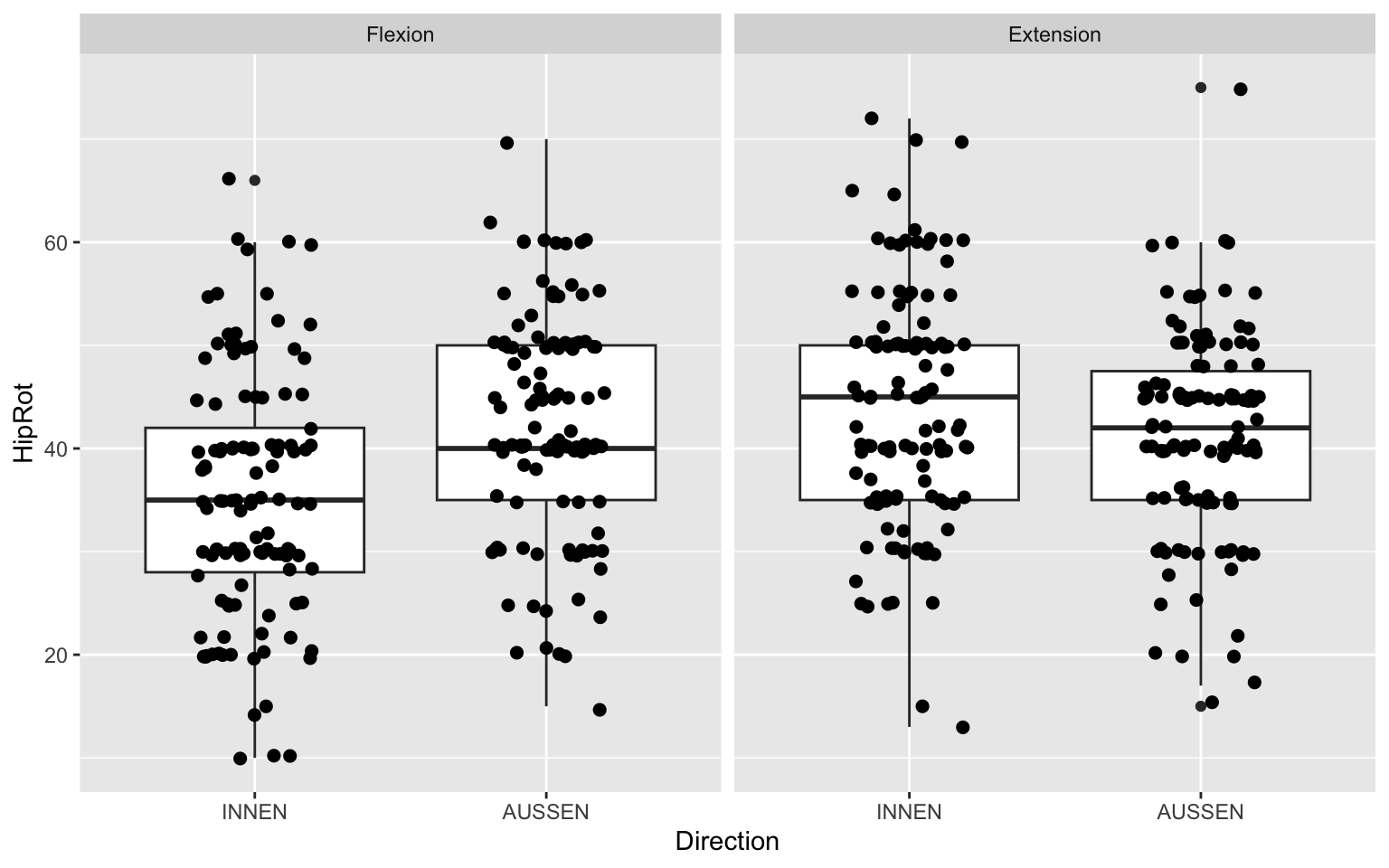

We might also add single data points to the boxplot
Code
dflong %>%
ggplot(aes(x = Direction, y = HipRot)) +
geom_boxplot() +
geom_point(
position = position_jitter(width = 0.2), # add jitter for better visibility
size = 2) +
facet_wrap(vars(ASTE))

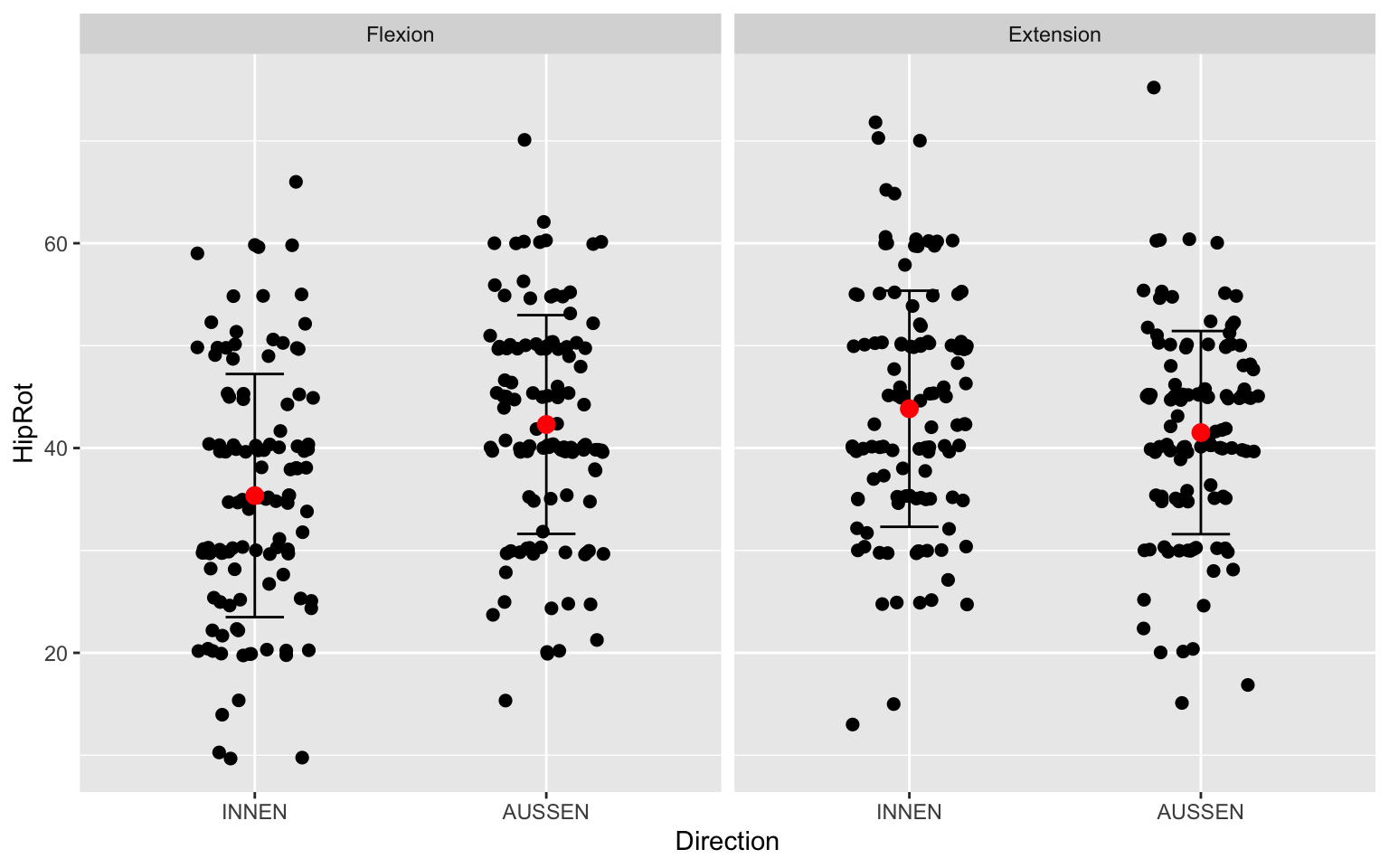

Dot plots with summary statistics
We need first to compute the summary statistics we want to add to the plot.
Code
means <- dflong %>%
group_by(Direction, ASTE) %>%
summarise_if(is.numeric, mean, na.rm = T) # calculate means
sds <- dflong %>%
group_by(Direction, ASTE) %>%
summarise_if(is.numeric, list(sd = sd), na.rm = T) # calculate standard deviations
summary_stats <- left_join(means, sds) # join into summary data frame
dflong %>%
ggplot(aes(x = Direction, y = HipRot)) +
geom_point(
position = position_jitter(width = 0.2), # add jitter for better visibility
size = 2) +
geom_errorbar(
data = summary_stats,
aes(x = Direction,
ymin = HipRot - sd,
ymax = HipRot + sd),
width = 0.2
) +
geom_point(
data = summary_stats,
aes(x = Direction, y = HipRot),
color = "red",
size = 3
) +
facet_wrap(vars(ASTE))

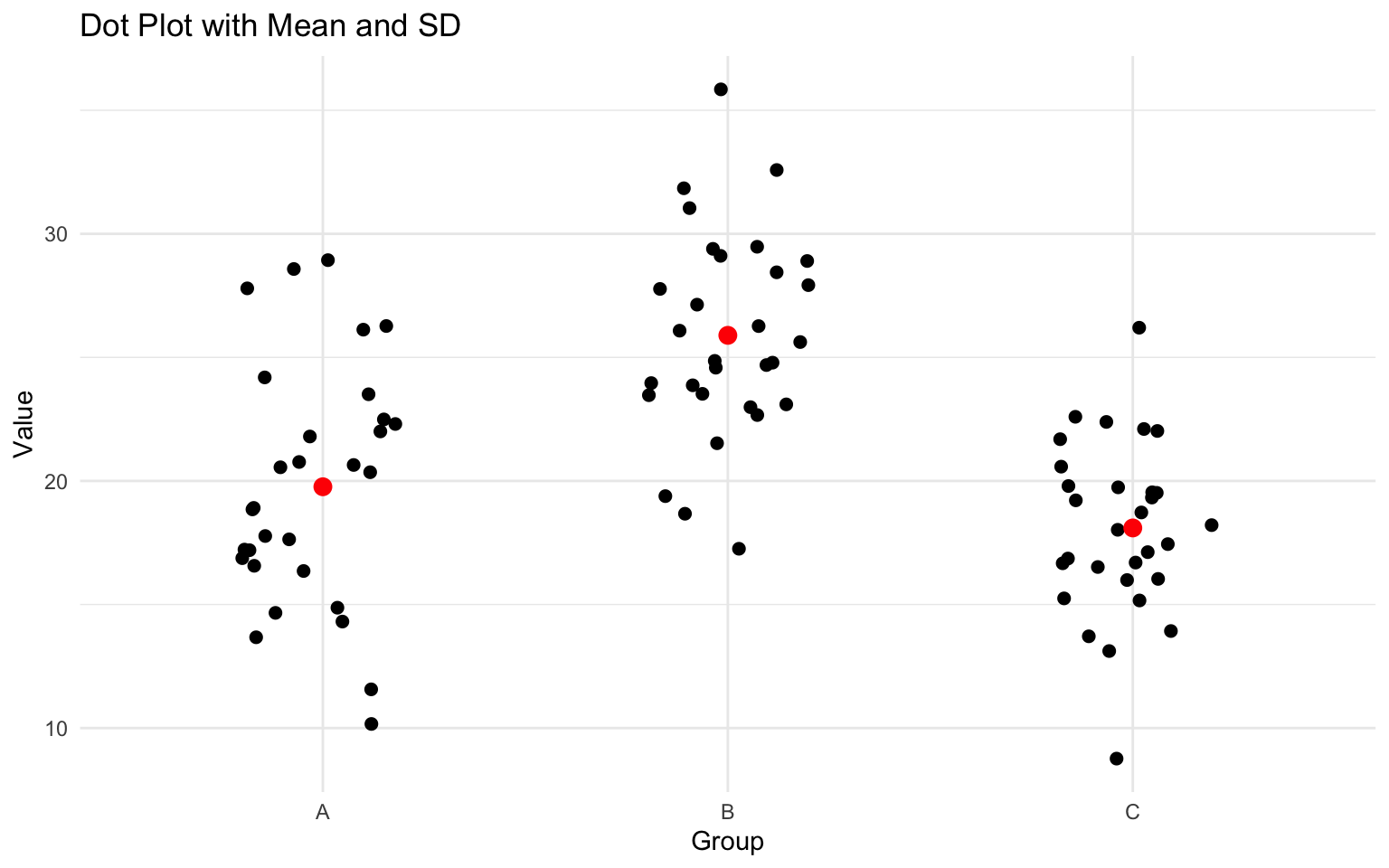

Error in ChatGPT code
Side mark: ChatGPT proposal produces an error when trying to plot the error bar. Seemingly, the y-variable must be named the same in the global data frame provided to ggplot and in the summary data frame.
Code
# Create a sample dataset (replace this with your own data)
set.seed(123)
data <- data.frame(
Group = rep(c("A", "B", "C"), each = 30),
Value = c(rnorm(30, mean = 20, sd = 5),
rnorm(30, mean = 25, sd = 5),
rnorm(30, mean = 18, sd = 4))
)
# Calculate mean and standard deviation for each group
summary_stats <- data %>%
group_by(Group) %>%
summarise(
Mean = mean(Value),
SD = sd(Value)
)
# Create the dot plot
ggplot(data = data, aes(x = Group, y = Value)) +
geom_point(position = position_jitter(width = 0.2), size = 2) + # Add jitter for better visibility
############ produces error ##############
# geom_errorbar(
# data = summary_stats,
# aes(x = Group, ymin = Mean - SD, ymax = Mean + SD),
# width = 0.2
# ) +
##########################################
geom_point(
data = summary_stats,
aes(x = Group, y = Mean),
color = "red",
size = 3
) +
labs(title = "Dot Plot with Mean and SD") +
theme_minimal()
Scatter plots and linear models

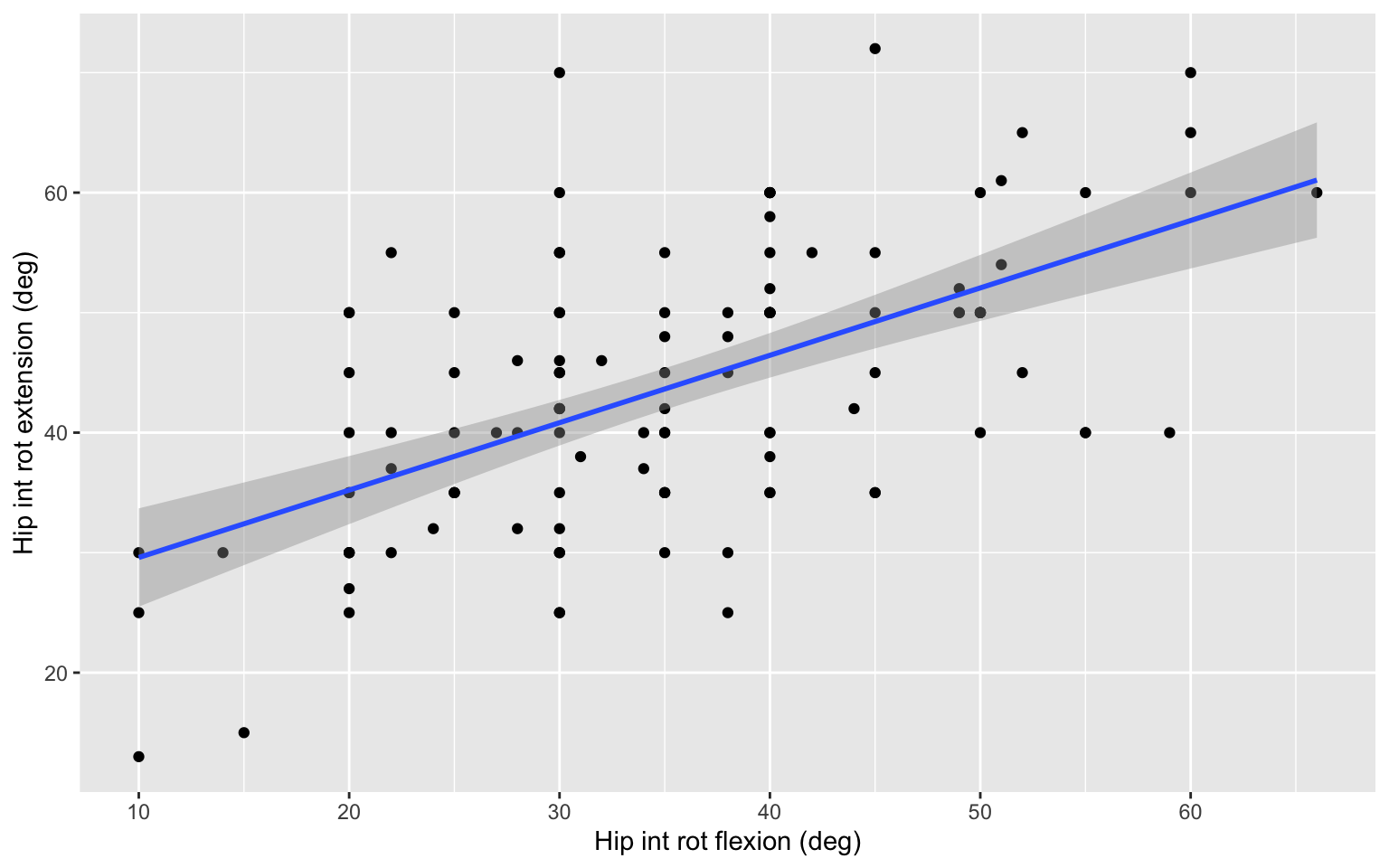

We like to look at the relation between hip internal rotation in flexion and extension. A linear model can directly be added to the plot by geom_smooth().
Code
ggplot(df, aes(x = HipRot_INNEN_Flexion, y = HipRot_INNEN_Extension)) +
geom_point() +
geom_smooth(method=lm) +
labs(x = "Hip int rot flexion (deg)", y = "Hip int rot extension (deg)")
Code
# ggsave("output/Hip_IntFlex_vs_IntExt.png",
# width = 10, height = 10 , units = "cm")
# ggsave("output/Hip_IntFlex_vs_IntExt.eps", device = cairo_ps,

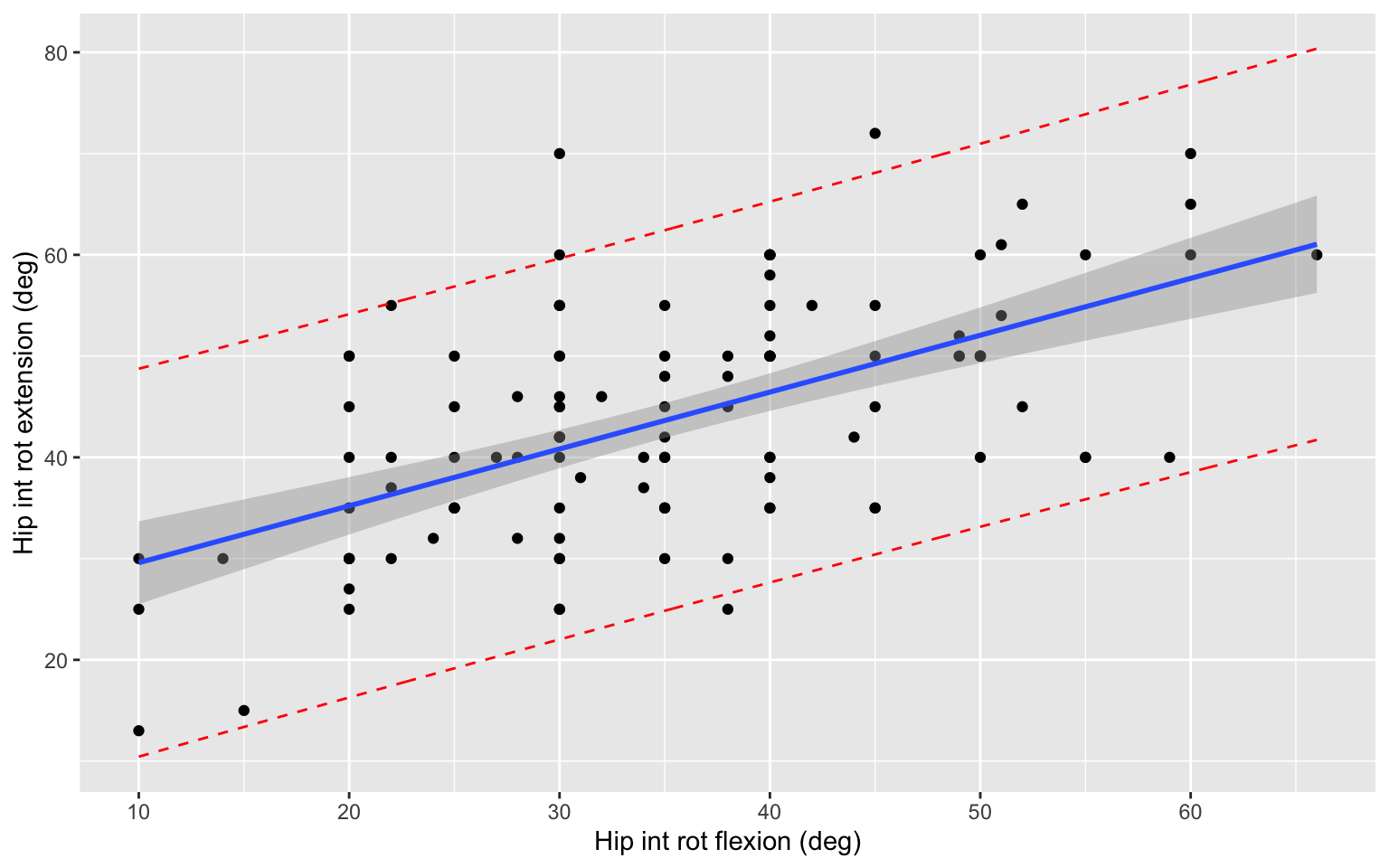

# width = 10, height = 10 , units = "cm")We might also like to add prediction intervals. For that we need the linear model and calculate the prediction errors first.
Code
mdl <- lm(HipRot_INNEN_Extension ~ HipRot_INNEN_Flexion, data = df)
print(mdl)Call:
lm(formula = HipRot_INNEN_Extension ~ HipRot_INNEN_Flexion, data = df)
Coefficients:
(Intercept) HipRot_INNEN_Flexion
23.9797 0.5616
Code
summary(mdl)Call:
lm(formula = HipRot_INNEN_Extension ~ HipRot_INNEN_Flexion, data = df)
Residuals:
Min 1Q Median 3Q Max
-20.3208 -6.3351 -0.2119 5.5560 29.1720
Coefficients:
Estimate Std. Error t value Pr(>|t|)
(Intercept) 23.97970 2.75463 8.705 2.66e-14 ***
HipRot_INNEN_Flexion 0.56161 0.07388 7.601 8.63e-12 ***
---
Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
Residual standard error: 9.448 on 115 degrees of freedom
(7 observations deleted due to missingness)
Multiple R-squared: 0.3344, Adjusted R-squared: 0.3286
F-statistic: 57.78 on 1 and 115 DF, p-value: 8.63e-12
Code
summarydf <- summary(mdl)
coeffci <- confint(mdl)
newx <- seq(min(df$HipRot_INNEN_Flexion, na.rm = TRUE),
max(df$HipRot_INNEN_Flexion, na.rm = TRUE),
by = 0.1)
predint <- predict(mdl,
newdata = data.frame(HipRot_INNEN_Flexion = newx),
interval = "prediction")
predint <- as_tibble(predint)
predint$newx <- newx
ggplot(df, aes(x = HipRot_INNEN_Flexion, y = HipRot_INNEN_Extension)) +
geom_point() +
geom_smooth(method=lm) +
geom_line(aes(x = newx, y = lwr), predint, color = "red", linetype = "dashed") +
geom_line(aes(x = newx, y = upr), predint, color = "red", linetype = "dashed") +
labs(x = "Hip int rot flexion (deg)", y = "Hip int rot extension (deg)")
Code
# ggsave("output/Hip_IntFlex_vs_IntExt_predict.png",
# width = 10, height = 10 , units = "cm")
# ggsave("output/Hip_IntFlex_vs_IntExt_predict.eps", device = cairo_ps,
# width = 10, height = 10 , units = "cm")Further data exploration

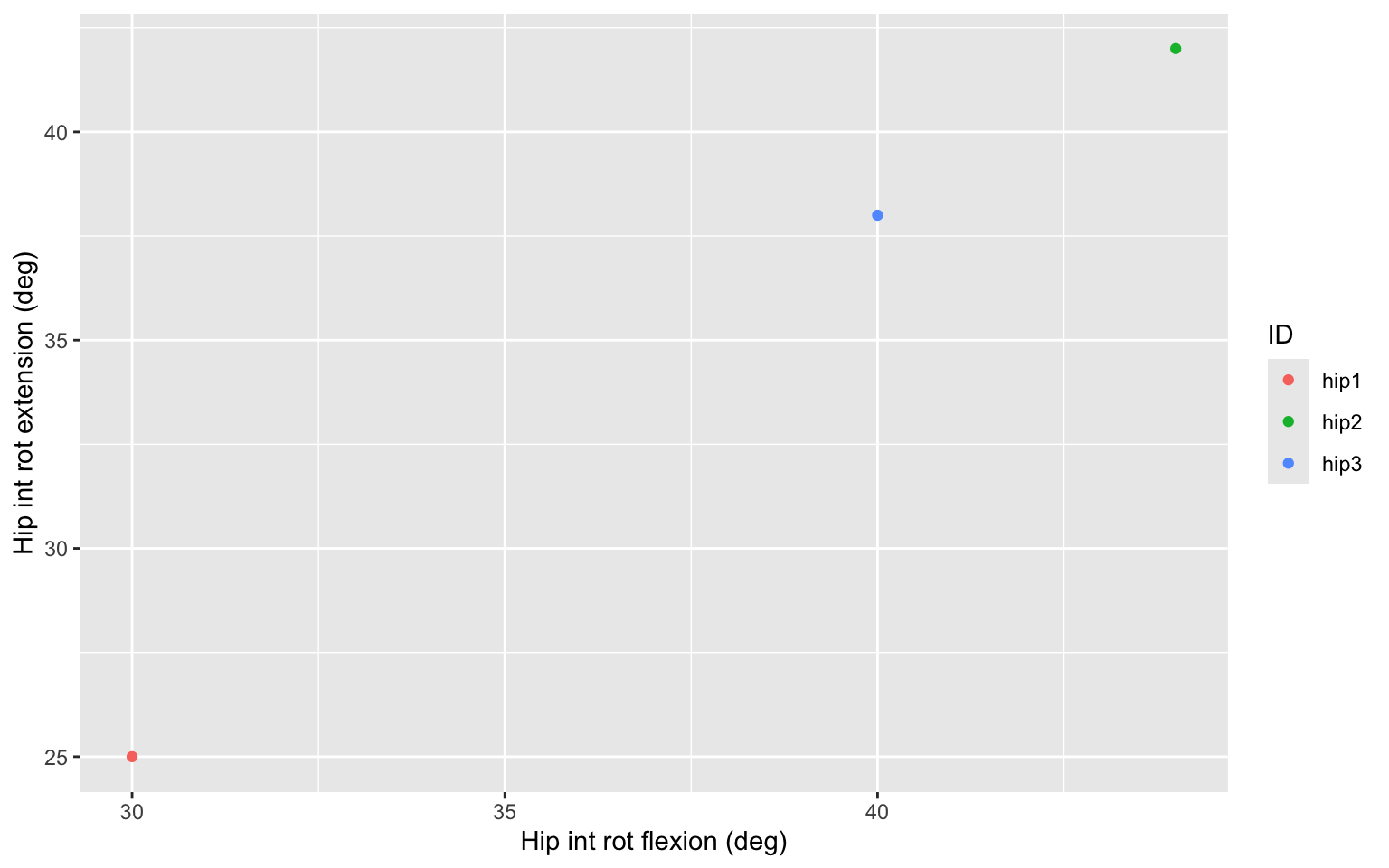

We might need to identify IDs in the visualisation. This can be achieved by coloring the ID during plotting. For better visibility we only choose a subset of the data.
Code
df %>% filter(ID == "hip1" | ID == "hip2" | ID == "hip3") %>%
ggplot(aes(x = HipRot_INNEN_Flexion, y = HipRot_INNEN_Extension, color = ID)) +
geom_point() +
labs(x = "Hip int rot flexion (deg)", y = "Hip int rot extension (deg)")
For further exploration we could add interactivity to the plot by ggplotly
Code
p <- df %>% filter(ID == "hip1" | ID == "hip2" | ID == "hip3") %>%
ggplot(aes(x = HipRot_INNEN_Flexion, y = HipRot_INNEN_Extension, color = ID)) +
geom_point() +
labs(x = "Hip int rot flexion (deg)", y = "Hip int rot extension (deg)")
ggplotly(p)
